ArgoCD
https://argoproj.github.io/cd/
Install
In cluster
$ helm repo add argo https://argoproj.github.io/argo-helm
$ helm repo update
$ helm pull argo/argo-cd
$ helm install argocd argo-cd-9.5.17.tgz --namespace argocd --create-namespace --set global.domain=las1
NAME: argocd
LAST DEPLOYED: Wed Jun 3 14:16:09 2026
NAMESPACE: argocd
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
In order to access the server UI you have the following options:
1. kubectl port-forward service/argocd-server -n argocd 8080:443
and then open the browser on http://localhost:8080 and accept the certificate
2. enable ingress in the values file `server.ingress.enabled` and either
- Add the annotation for ssl passthrough: https://argo-cd.readthedocs.io/en/stable/operator-manual/ingress/#option-1-ssl-passthrough
- Set the `configs.params."server.insecure"` in the values file and terminate SSL at your ingress: https://argo-cd.readthedocs.io/en/stable/operator-manual/ingress/#option-2-multiple-ingress-objects-and-hosts
After reaching the UI the first time you can login with username: admin and the random password generated during the installation. You can find the password by running:
kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d
(You should delete the initial secret afterwards as suggested by the Getting Started Guide: https://argo-cd.readthedocs.io/en/stable/getting_started/#4-login-using-the-cli)
Note
The global.domain is set to the domain we expose the argocd service.
Show the workloads:
$ kubectl get svc,deploy -n argocd
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/argocd-applicationset-controller ClusterIP 10.103.117.59 <none> 7000/TCP 53s
service/argocd-dex-server ClusterIP 10.105.77.156 <none> 5556/TCP,5557/TCP 53s
service/argocd-redis ClusterIP 10.100.74.58 <none> 6379/TCP 53s
service/argocd-repo-server ClusterIP 10.109.28.160 <none> 8081/TCP 53s
service/argocd-server ClusterIP 10.102.127.32 <none> 80/TCP,443/TCP 53s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/argocd-applicationset-controller 1/1 1 1 53s
deployment.apps/argocd-dex-server 1/1 1 1 53s
deployment.apps/argocd-notifications-controller 1/1 1 1 53s
deployment.apps/argocd-redis 1/1 1 1 53s
deployment.apps/argocd-repo-server 1/1 1 1 53s
deployment.apps/argocd-server 1/1 1 1 53s
Now expose the service by modify its type to LoadBalancer (also with available external IPs for we don’t have IP provider):
$ kubectl patch svc argocd-server -n argocd -p '{"spec": {"type": "LoadBalancer", "externalIPs": ["10.225.4.52", "10.220.70.125"]}}'
service/argocd-server patched
Now we can access the web UI. The initial admin password can be get as said in the installation notes. Or by CLI metioned hereafter.
CLI
$ brew install argocd
$ argocd version
argocd: v3.4.3+1801122.dirty
BuildDate: 2026-05-28T15:08:05Z
GitCommit: 1801122b4391cad4961301f787006dc9a88c2dd3
GitTreeState: dirty
GitTag: v3.4.3
GoVersion: go1.26.3
Compiler: gc
Platform: darwin/arm64
{"level":"fatal","msg":"Argo CD server address unspecified","time":"2026-06-03T10:35:48+08:00"}
Usage
Accounts
Get the initial password of admin:
$ argocd admin initial-password -n argocd
xxxxxxxxxxxxxxxx
This password must be only used for first time login. We strongly recommend you update the password using `argocd account update-password`.
Login:
$ argocd login las1
WARNING: server certificate had error: error creating connection: tls: failed to verify certificate: x509: certificate signed by unknown authority. Proceed insecurely (y/n)? y
Username: admin
Password:
'admin:login' logged in successfully
Context 'las1' updated
Now the server is added to context list:
$ argocd context
CURRENT NAME SERVER
* las1 las1
Change the password of current user (admin):
$ argocd account update-password
Then the secret of intial password can be deleted:
$ kubectl delete secret argocd-initial-admin-secret -n argocd
secret "argocd-initial-admin-secret" deleted from argocd namespace
The default cluster is where ArgoCD installed:
$ argocd cluster list
SERVER NAME VERSION STATUS MESSAGE PROJECT
https://kubernetes.default.svc in-cluster 1.35.0 Unknown Cluster has no applications and is not being monitored.
Repos
Before create an app, add the repo to make sure it can be connected:
$ argocd repo add git@github.com:lasyard/coding-go.git --name argocd-example --ssh-private-key-path ~/.ssh/id_ed25519
Repository 'git@github.com:lasyard/coding-go.git' added
Show the repo list:
$ argocd repo list
TYPE NAME REPO INSECURE OCI LFS CREDS STATUS MESSAGE PROJECT
git argocd-example git@github.com:lasyard/coding-go.git false false false false Successful
Apps
Then we can create an app in the cluster specified by --dest-server using this repo:
$ argocd app create upload --repo git@github.com:lasyard/coding-go.git --path k8s/upload-svc --dest-server https://kubernetes.default.svc --dest-namespace default
application 'upload' created
List the apps:
$ argocd app list
NAME CLUSTER NAMESPACE PROJECT STATUS HEALTH SYNCPOLICY CONDITIONS REPO PATH TARGET
argocd/upload https://kubernetes.default.svc default default OutOfSync Missing Manual <none> git@github.com:lasyard/coding-go.git k8s/upload-svc
Show the app details:
$ argocd app get upload
Name: argocd/upload
Project: default
Server: https://kubernetes.default.svc
Namespace: default
URL: https://las1/applications/upload
Source:
- Repo: git@github.com:lasyard/coding-go.git
Target:
Path: k8s/upload-svc
SyncWindow: Sync Allowed
Sync Policy: Manual
Sync Status: OutOfSync from (3cc2757)
Health Status: Missing
GROUP KIND NAMESPACE NAME STATUS HEALTH HOOK MESSAGE
Service default upload-svc OutOfSync Missing
apps Deployment default upload-svc OutOfSync Missing
networking.k8s.io Ingress default upload-svc-ingress OutOfSync Missing
Note
ArgoCD will search the repo for things that can be installed in kubernetes. The other files does not matter. Only put the related files in the path for best practice.
Actually, the app is a resource stored in argocd namespace:
$ kubectl get app -n argocd
NAME SYNC STATUS HEALTH STATUS
upload OutOfSync Missing
We need to sync the app mannually:
$ argocd app sync upload
TIMESTAMP GROUP KIND NAMESPACE NAME STATUS HEALTH HOOK MESSAGE
2026-06-04T14:35:02+08:00 Service default upload-svc OutOfSync Missing
2026-06-04T14:35:02+08:00 apps Deployment default upload-svc OutOfSync Missing
2026-06-04T14:35:02+08:00 networking.k8s.io Ingress default upload-svc-ingress OutOfSync Missing
2026-06-04T14:35:05+08:00 networking.k8s.io Ingress default upload-svc-ingress OutOfSync Missing ingress.networking.k8s.io/upload-svc-ingress created
2026-06-04T14:35:05+08:00 Service default upload-svc OutOfSync Missing service/upload-svc created
2026-06-04T14:35:05+08:00 apps Deployment default upload-svc OutOfSync Missing deployment.apps/upload-svc created
2026-06-04T14:35:06+08:00 Service default upload-svc Synced Healthy service/upload-svc created
2026-06-04T14:35:06+08:00 apps Deployment default upload-svc Synced Progressing deployment.apps/upload-svc created
2026-06-04T14:35:06+08:00 networking.k8s.io Ingress default upload-svc-ingress Synced Progressing ingress.networking.k8s.io/upload-svc-ingress created
Name: argocd/upload
Project: default
Server: https://kubernetes.default.svc
Namespace: default
URL: https://las1/applications/upload
Source:
- Repo: git@github.com:lasyard/coding-go.git
Target:
Path: k8s/upload-svc
SyncWindow: Sync Allowed
Sync Policy: Manual
Sync Status: Synced to (3cc2757)
Health Status: Progressing
Operation: Sync
Sync Revision: 3cc2757fe554830bb989daf7028565a2028b1dbf
Phase: Succeeded
Start: 2026-06-04 14:35:05 +0800 CST
Finished: 2026-06-04 14:35:05 +0800 CST
Duration: 0s
Message: successfully synced (all tasks run)
GROUP KIND NAMESPACE NAME STATUS HEALTH HOOK MESSAGE
Service default upload-svc Synced Healthy service/upload-svc created
apps Deployment default upload-svc Synced Healthy deployment.apps/upload-svc created
networking.k8s.io Ingress default upload-svc-ingress Synced Progressing ingress.networking.k8s.io/upload-svc-ingress created

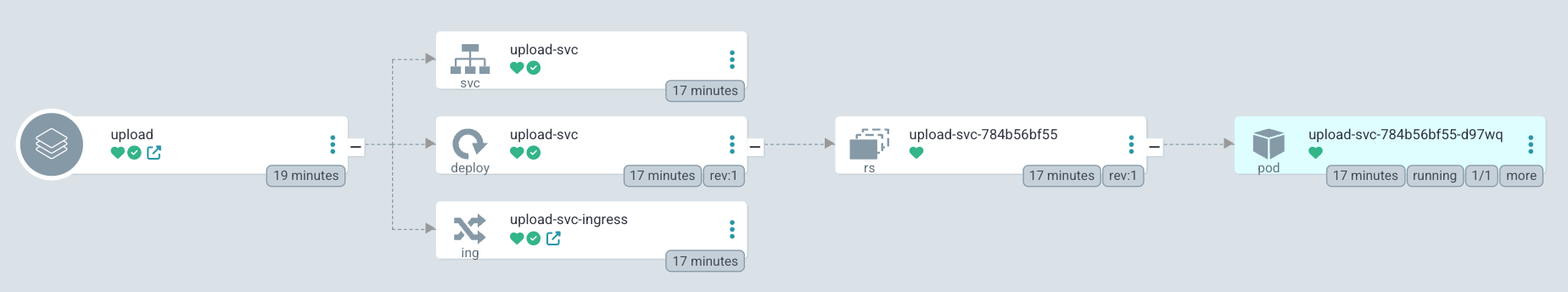

At the URL provided above, you can find a figure to illustrate the app:
